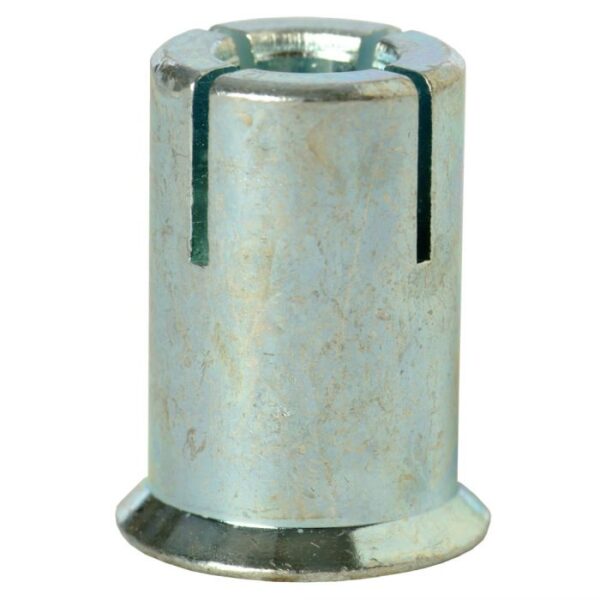

DROP IN ANCHOR 3/8″” STUBI

The UCAN STUBi Drop-in Anchor is an internally threaded, flush mounted expansion anchor, which is pre-assembled with an internal expansion plug. The anchor is zinc plated in accordance with ASTM B633, SC-1,Type lll standard. The matching UCAN setting tool allows for correct anchor setting. The anchor is designed to provide reliable fastening in hollow core panels, precast and post tension slabs.

FEATURES

• Pre-assembled design
• 3/8″ Short Drop-in anchor for hollow core slabs and other shallow embedment requirements

TYPICAL APPLICATION

• Light duty overhead wall fastening precast, post tensioned fastening concrete

LIMITATIONS

• Not recommended for uncured concrete (less than 7 days old), light weight concrete, masonry block or brick
